NEW RELEASE
PARTNUMBER : FEX1KEY FEATURES
PROJECTS
DATA LOGGING
BACKUP & RESTORE
SHARE DATA
SECURE DATA HANDLING
INSTALLATION GUIDE
STEP 1
IMPORTANT NOTICE
YOUR COMPUTER MAY PREVENT THE DOWNLOAD OF AN EXECUTABLE FILE.
IN CASE A DOWNLOAD FAILS PRESS :
HELP
STEP 2
INSTALL FEX ON YOUR PCSTEP 3
WHEN YOU STARTUP FEX 3.0 FOR THE FIRST TIME, YOU WILL NEED TO REGISTER !For support : mail to FEX@fireye.pro
DOWNLOAD EXECUTABLE FILES
The solution is to to right click on the .exe program,
select general tab then tick “unblock” for the new security question.
This then allows the .exe program to be downloaded without Windows 11 Defender
smart screen stopping the .exe program from being downloaded..
FEX will now be available for installation in your Download folder.
select general tab then tick “unblock” for the new security question.
This then allows the .exe program to be downloaded without Windows 11 Defender
smart screen stopping the .exe program from being downloaded..
FEX will now be available for installation in your Download folder.
PROJECTS

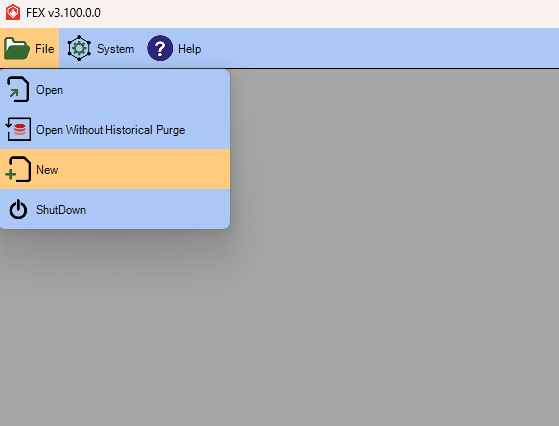

FEX allows you to create projects. Each project is unique and set up to serve the application.
FEX projects are stored in your public folder. this allows the user to share, upload/download complete projects and modify them if needed.
Your first project...
We recommend to start with a new project and call it TEMPLATE.
In this template the user assigns a selection of scanners,
presets, safty & security user-related settings, graphs, monitors & status screens.
Note :

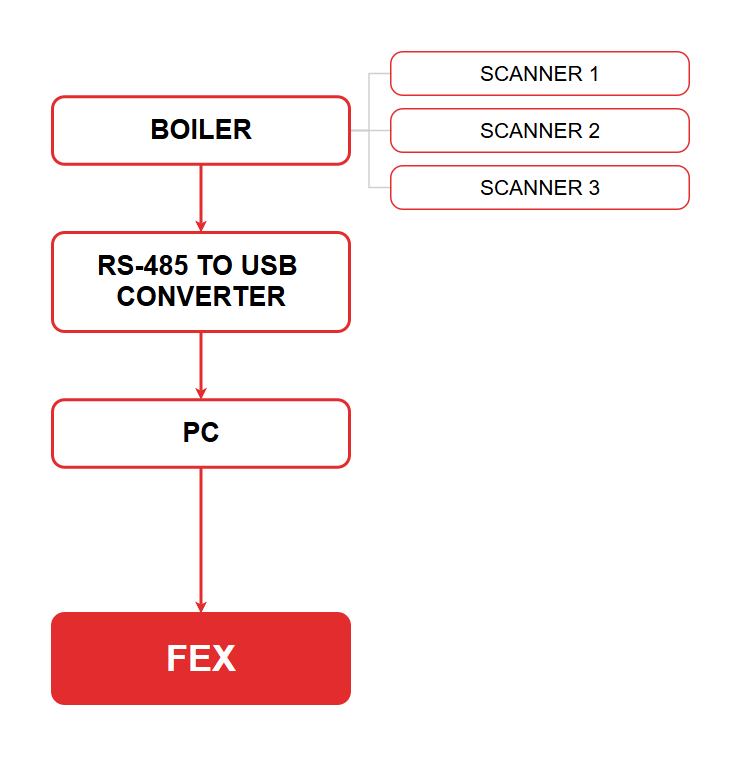

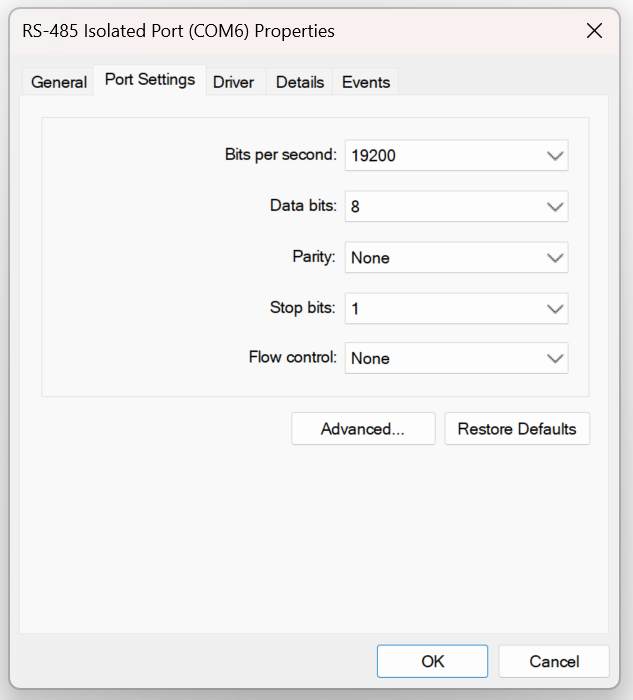

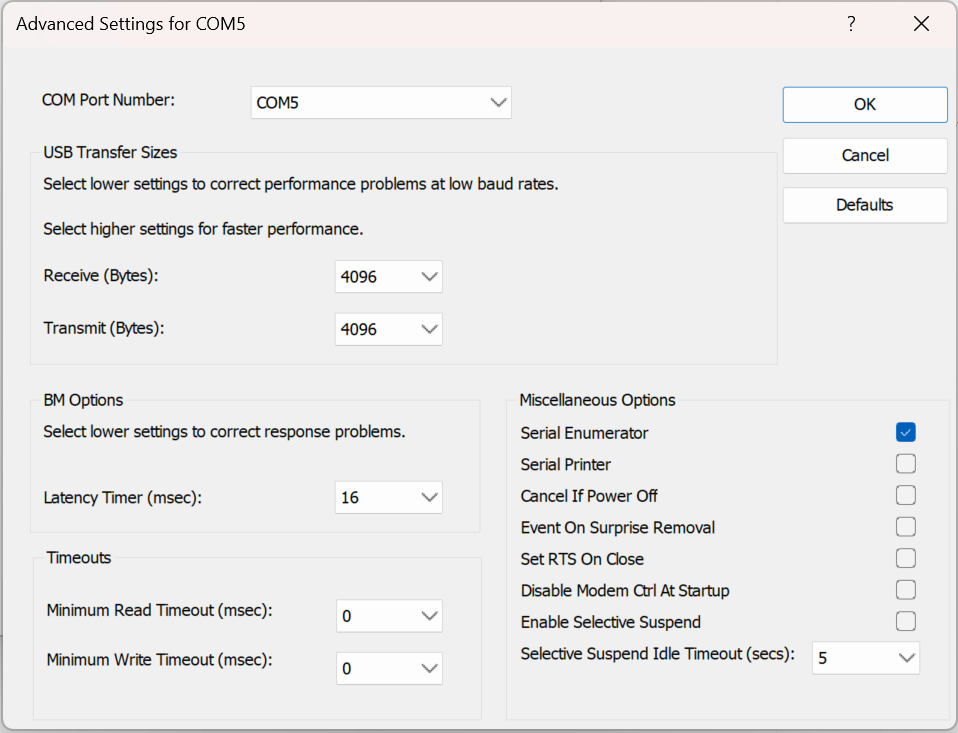

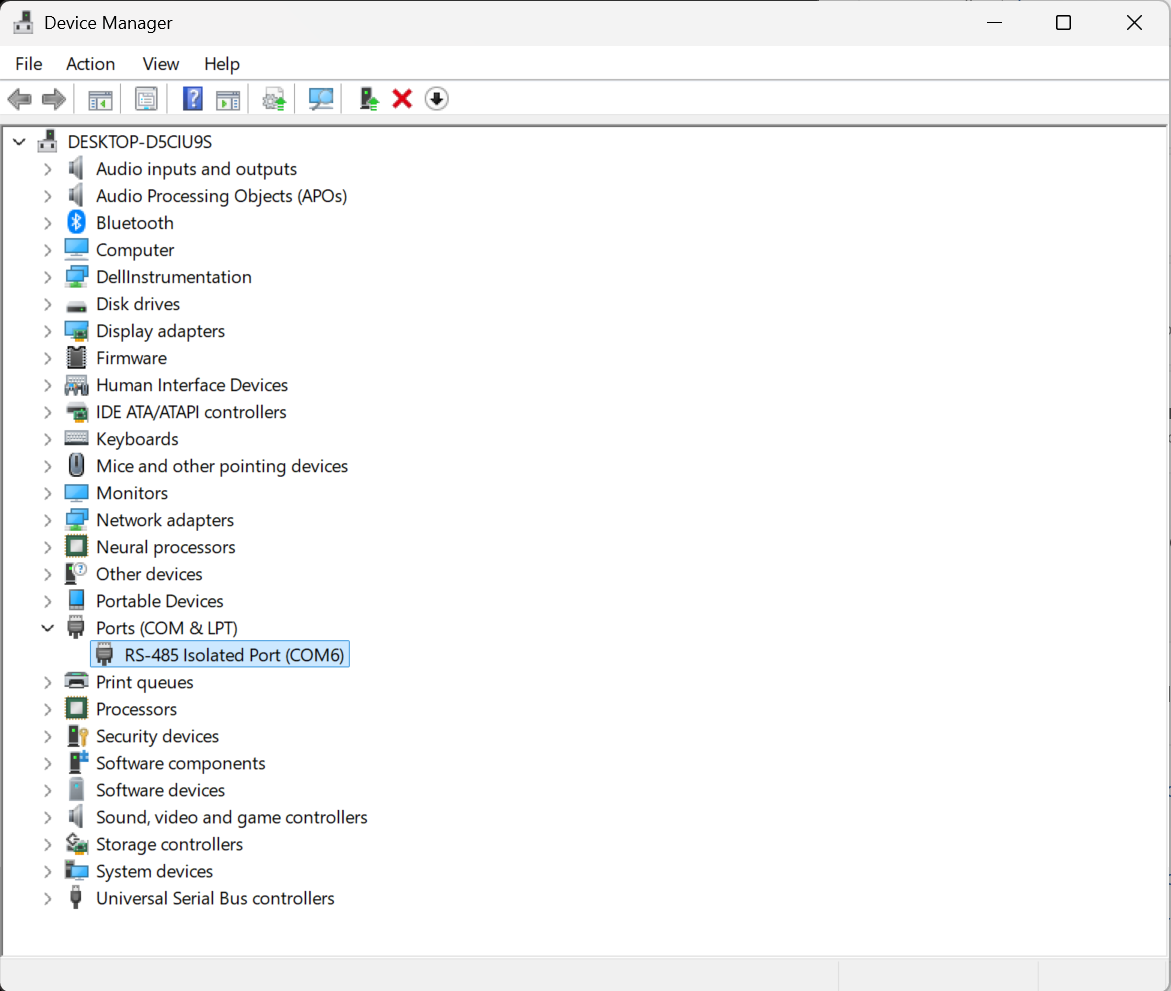

if you intend to share projects, we recommended to set the RS-485 converter to a static COM address.
We recommend to set to COM5
FEX projects are stored in your public folder. this allows the user to share, upload/download complete projects and modify them if needed.
Your first project...
We recommend to start with a new project and call it TEMPLATE.
In this template the user assigns a selection of scanners,
presets, safty & security user-related settings, graphs, monitors & status screens.
Note :
if you intend to share projects, we recommended to set the RS-485 converter to a static COM address.
We recommend to set to COM5
DATA LOGGING
First question when a flame scanner trips a burner.....
The first question is always : WHY ?
To answer that question, it's best to be able to look back and figure out what caused the trip.
OPTION1
Scanner setting related
Sensitivity too low, wrong frequency selected
OPTION 2
Combustion related
Maintenance, damper setting, Fuel/air ratio, Flame lift-off, Gaspressure, Airflow/pressure, Humidity, combustion chamber draft, ...
There is a lot to learn if you can link the UV Intensity to what happens inside your combustion chamber...

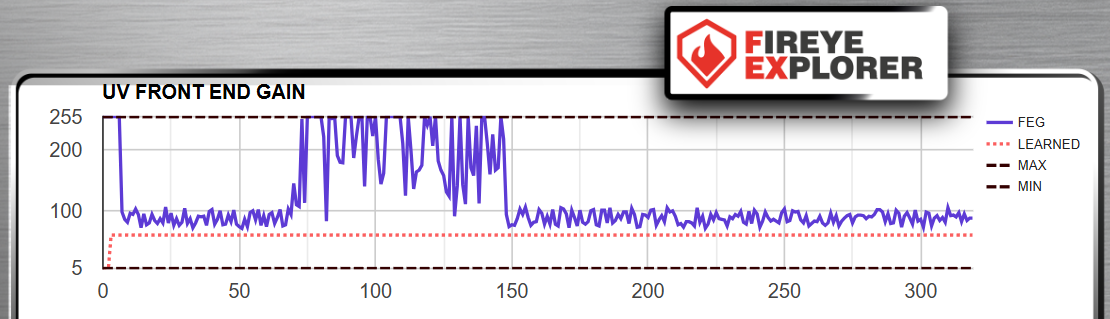

Logging results :
The first question is always : WHY ?
To answer that question, it's best to be able to look back and figure out what caused the trip.
OPTION1
Scanner setting related
Sensitivity too low, wrong frequency selected
OPTION 2
Combustion related
Maintenance, damper setting, Fuel/air ratio, Flame lift-off, Gaspressure, Airflow/pressure, Humidity, combustion chamber draft, ...
There is a lot to learn if you can link the UV Intensity to what happens inside your combustion chamber...
Logging results :

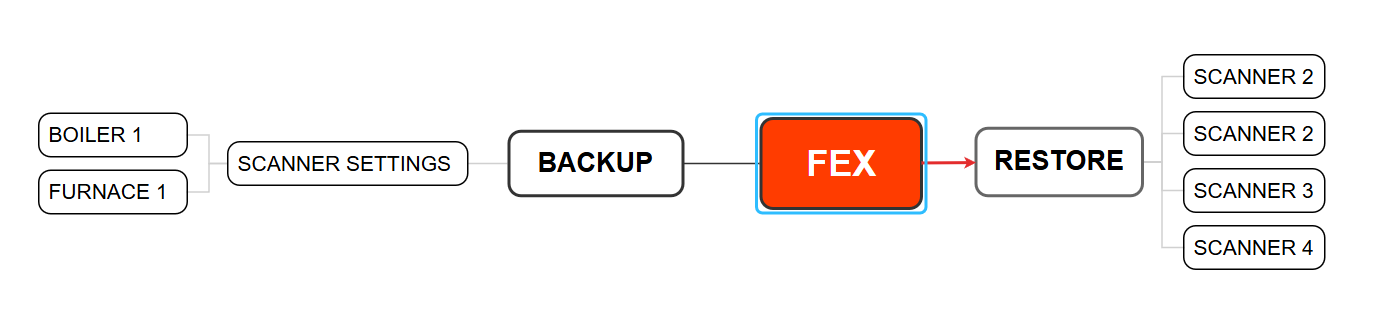

BACKUP & RESTORE
Avoid human error
ROC Report of Change
Allows complex setting up
Custom made user manuals
SHARING EXPERTISE
To improve remote support
Report of Change
Create a better understanding
Store data in the cloud

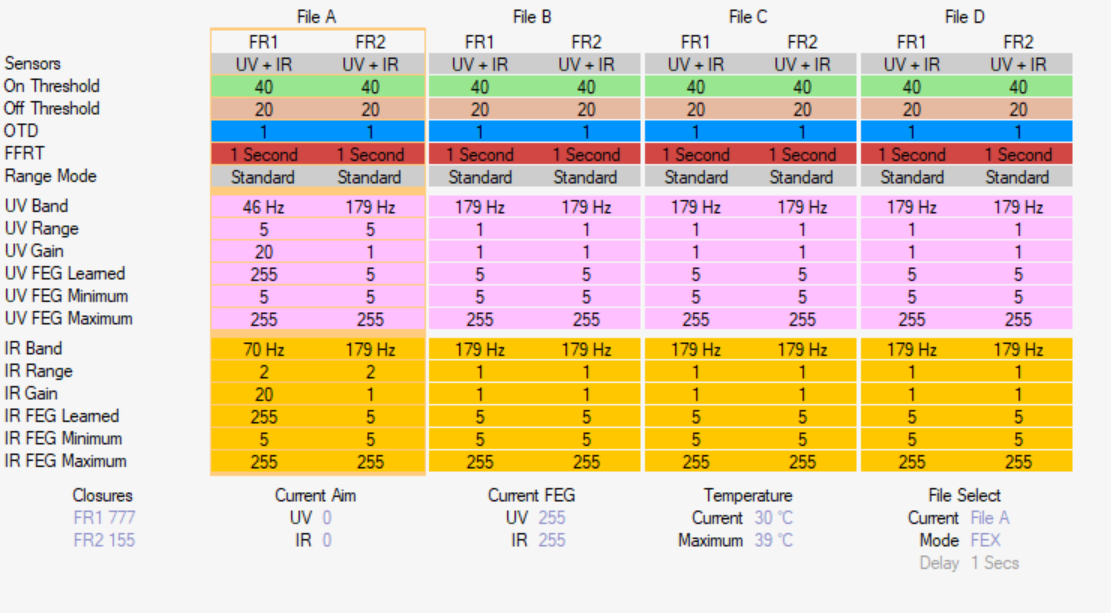

compare settings

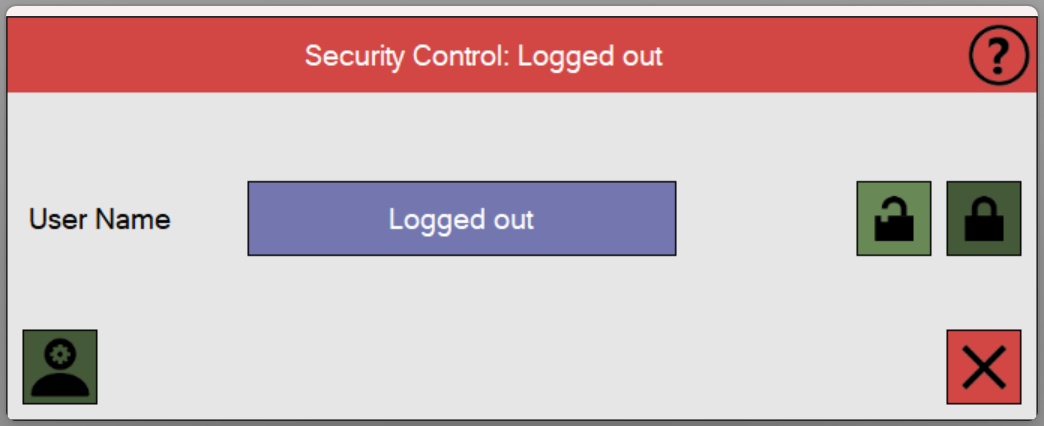

SECURITY SETTINGS
Fireye InSight flame scanners are Password protected
Default password : 0205
For cybersecutrity reasons, the password of the scanner has to be set to 0205 if you want to change scanner settings.
You need to log in as Administrator (Admin) to change scanner settings.

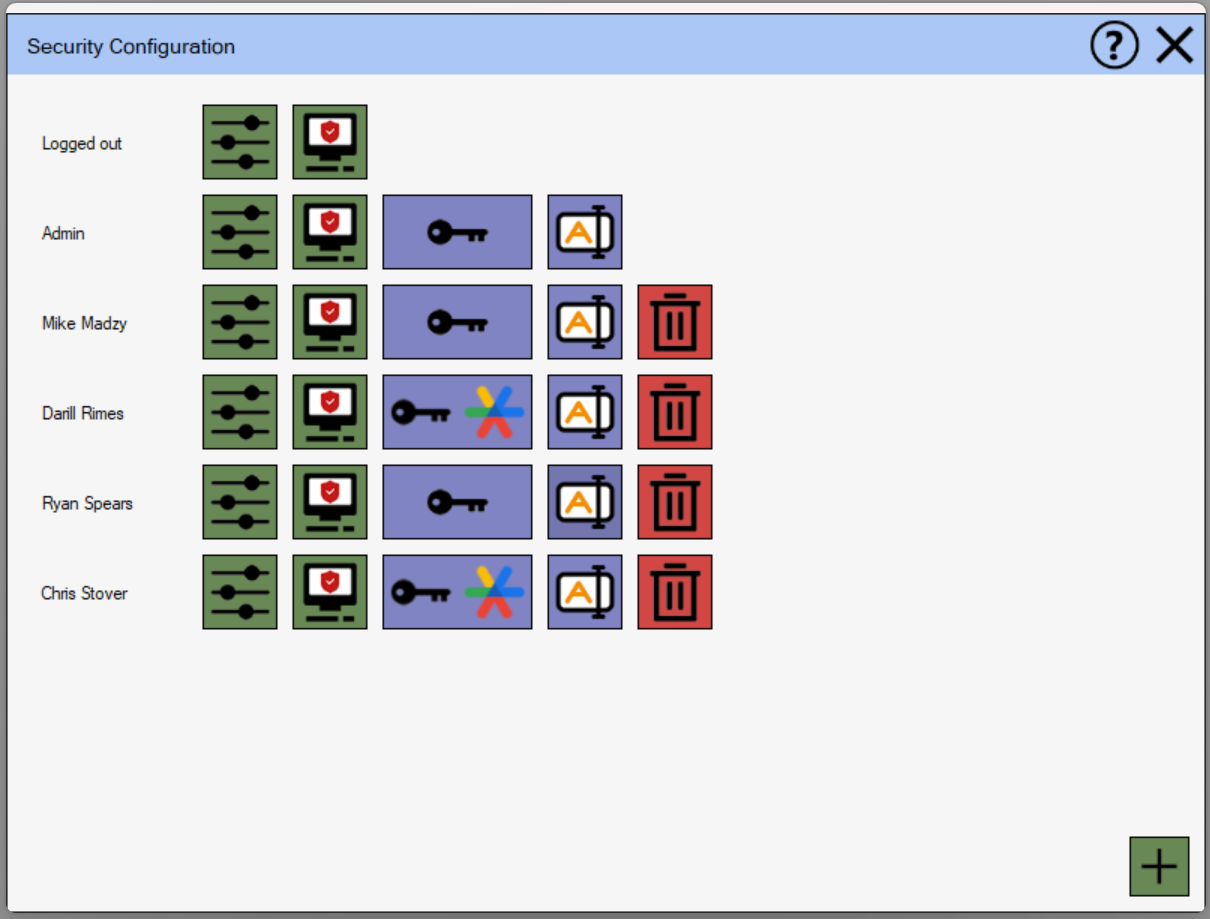

FEX offers multiple user profiles and store user activity
